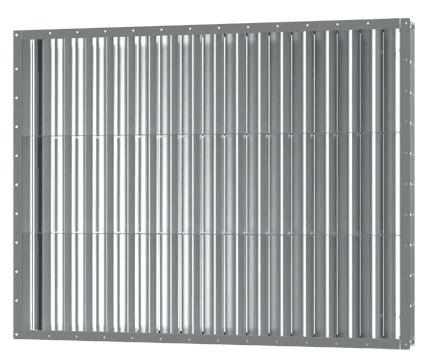

FC-BRL-HP blast louver is developed for those applications where the louver shall be able to withstand the blast waves and mitigate the blast pressure passing into buildings. Thanks to its unique blade-array which is purposely designed to reflect the incident blast pressure, FC-BRL-HP blast louver could significantly mitigate the blast pressure passing through.
| High-performance of blast resistance | Withstand 1500 KPa pressure reflected and 880 KPa.ms impulse. |
| Useable for Multiple Blast Pressure | Able to withstand multiple blast impacts. |
| Customization Available | Customization service offered regarding product size, coating |
| Structural Integrity | No component dislodgement during or after blast |
| A. Frame Material | 1 – Stainless Steel 316, 2 – Stainless Steel 304, 3 – Hot galvanized steel, 4 – Coated steel |
| B. Blade Material | 1 – Stainless Steel 316, 2 – Stainless Steel 304, 3 – Hot galvanized steel, 4 – Coated steel |
| C. Mounting Type | OW – On the wall, IW – In the wall |
| D. Width (mm) | 0300, 0500, 0700, 0900, 1000, 1200, 1500, …… |
| E. Height (mm) | 0300, 0500, 0700, 0900, 1000, 1200, 1500, …… |
| VTT-Eurofins Certification | Aerodynamic and acoustic performance testing of the blast louvre was conducted by a FINAS-accredited laboratory in accordance with EN 1751:2014, ISO 5135:2020, ISO 3741:2010, and ISO 5167:2022 standards, verifying its airflow, pressure loss, and noise performance. |
| Certificate | Certifications are available upon requests. |
