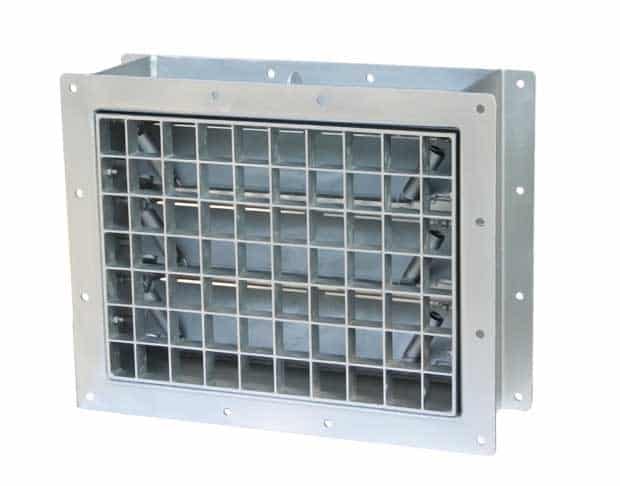

FC-BRV-21 High-performance Blast Damper
FC-BRV-21 high-performance blast dampers are developed for those applications where high air- flow-rate and perfect blast protection are required. It achieves unprecedented fast closing aiming the best protection by minimizing Rotational-Inertia blades thanks to Shaft-linkage-free design. It could stand blast overpressure reflected up to 5 bar and could maintain high-performance protection after multiple blast impacts.
FC-BRV-21 high-performance blast dampers could serve a wide range of applications, including OGP, energy, civil defense, and other applications where blast-resistant protection is required.
Additional information
| Lightening speed in closing bringing perfect protection | Thanks to its innovative Shaft-linkage-free design, it can respond extremely fast to various blast waves and close the air passage with duration of only one half of average closing time of other alternatives in the market. |
|---|---|
| High-performance of blast resistance | The optimized blast resistant structure design enables it to withstand the blast peak pressure up to 5 bar reflected while assuring the perfect blast protection. |
| Automatic reset | It’s able to retrieve ventilation function automatically after the blast. |
| Double-acting function available | This product line offers double-acting option for special applications such as protection for nuclear power plants. |
| Customized large damper covering the whole wall for energy saving | Thanks to its modular design, a damper now could be as large as a whole wall to achieve high-air-volume at low-pressure-drop for energy saving. |
| Maximum Peak pressure | 5 bar reflected (Customization for higher Pressure available upon request) |
| Closing time | ≤8ms (At 0.75 bar reflected) ≤5ms (At 2 bar reflected) ≤3ms (At 5 bar reflected) |
| Operating temperature | -40 Celsius to 300 Celsius |
| Block of blast impulse | ≥99.3% by shock tube test |
| ATEX Certification | Based on EN1127-1:2019 and EN ISO 80079-36:2016, EN ISO 80079-37:2016, under ATEX directive 2014/34EU, (Gas), Zone 1 &2, IIC, T6…T2.. (Dust), Zone 21 &22, IIIC, T70 ℃ -285℃ |
| A. Type | SA- Standard, DA- Double Acting |
| B. Installation | OW – On the wall, IW – In the wall, D – Duct connected |
| C. Material of damper | 1 – Stainless Steel 316, 2 – Stainless Steel 304, 3 – Hot galvanized steel, 4 – Paint coated steel |
| D. Width (mm) | 0300, 0500, 0700, 0900, 1000, 1200, 1500, …… |
| E. Height (mm) | 0300, 0500, 0700, 0900, 1000, 1200, 1500, …… |
| Certificate | Certifications are available upon requests. |
| Application | OGP, Chemical, Power, Marine, Mining, Civil defense |
