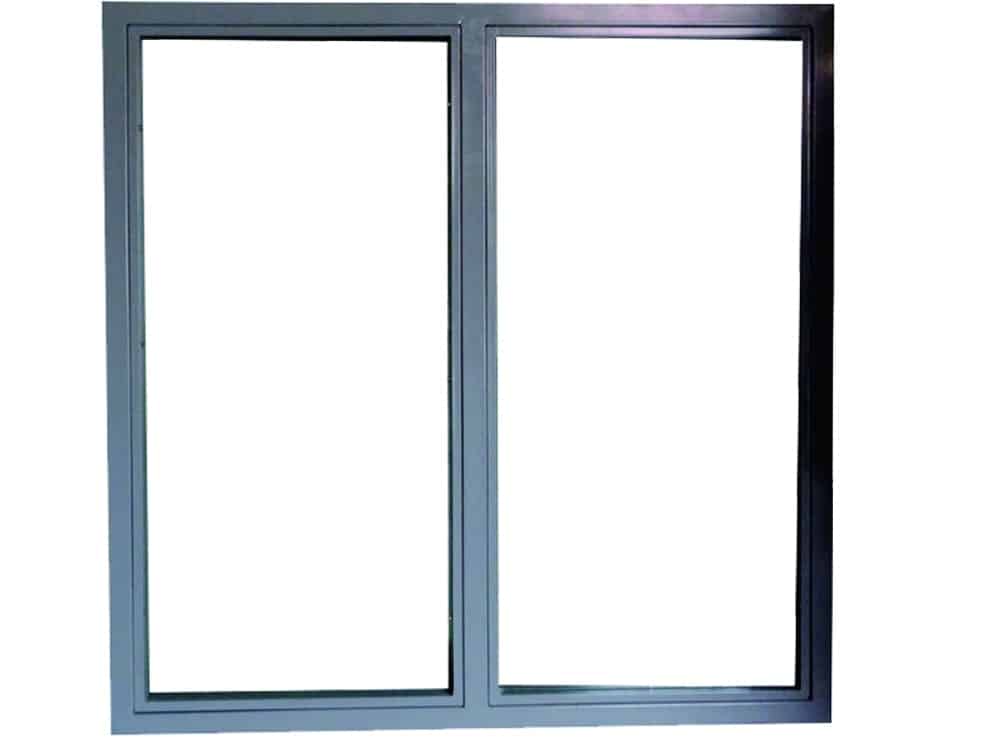

FC-BRW-EI Blast window
FC-BRW-EI enhanced blast windows are designed to provide blast protection up to 2 bar reflected by long duration or up to 5 bar reflected by 5ms. FC-BRW-EI enhanced blast windows can remain fully functional after one or multiple blast hits thanks to design that all the components, including frame and laminated glass layers, work in elastic range under the blast grade mentioned.
The frames of FC-BRW-EI are available with multiple options to meet various applications such as in-wall installation for benefits of energy saving and minimum cleaning work.
Additional information
| Be able to stand multiple blast hits | Able to stand multiple blast impacts and provide protection all the time |
|---|---|
| Maintain all functions after blast hits | Minimize the maintenance job to replace the windows after the blast accident. |
| Optional 2-hour fire rated protection | Comply with NFPA, UL standards regarding fire-proof performance. |
| Good corrosion resistant performance | Frames are made of chemical-resistant materials such as epoxy coated steel, stainless steel, etc. |
| Frame materials | Epoxy coated steel/HGS/SS |
| Glass | Multiple laminated glass layers |
| Design blast grade | >2 bar-long duration / 5 bar-5ms |
| Fire rated (Optional) | 2 hours (NFPA, UL) |
| Glass module size (W x H mm) | 900×1100 |
| A. Frame type | 1. On-wall, 2. On-wall with rain shield |
| B. Frame material | 1. SS316, 2. SS304, 3. Epoxy coated steel, 4. HGS |
| C. Fire rated | 1. 2 hours, 2. No |
| D. Raw numbers | 01, 02, 03, … |
| E. Column number | 01, 02, 03, … |
| Certificates | Blast type test done by ASTM F1642, GSA-TS01 at Intertek lab |
| Applications | Civil defense, OGP, Chemical, Nuclear power, Others |
