FC-RBV-31(E) High Performance Exhaust Blast Valves

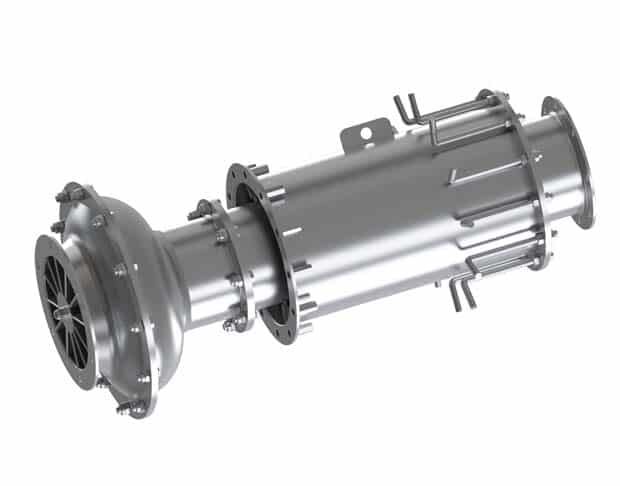

FC-RBV-31(E) Exhaust blast valve is developed for working as passage of exhausted gas while providing blast protection. It can work under temperature range of -30 °C to +520 °C, stand the overpressure up to 20 bar reflected and shut off in milliseconds blocking 99% blast impulse. It also could stand multiple blast impacts and maintain full functions after blasts. Its stream-line shape enables the high air flow efficiency. FC-RBV-31(E) Exhaust blast valves mainly serve hardened shelters in civil defense and military.FC-RBV-31(E) Exhaust blast valves mainly serve hardened shelters in civil defense and military.
Additional information
|
High performance of blast resistance |
Being able to stand multiple blast impacts with peak pressure reflected up to more than 20 bar and maintain all functions after blasts. |
|
High performance of protection |
Being able to completely close in very short time to assure approximately 100% impulse block rate. |
|
Heat-insulated setup |
Being able to work as passage of exhausted gas while providing blast protection. |
|
High ventilation volume |
Ensuring the high air flow efficiency with the streamline design. |
|
Automatic-reset |
Being able to retrieve ventilation function automatically after the blast so as to minimize the maintenance. |
|
Double acting |
Providing protection from both positive pressure hit and sucking phase. |
|
High corrosion resistant performance |
Being made of chemical-resistant materials and fit for all corrosive conditions. |
|
Designed peak pressure |
>20 bar peak pressure reflected |
|
Designed blast duration |
>15 ms |
|
Impulse block rate |
> 99% |
|
Design working temperature |
-30 °C ~ 520 °C |
|
A. Model |
1-D150, 2-D250, 3-D350 |
|
B. Materials of valve body |
1-Stainless Steel 316, 2-Stainless Steel 304, 3-Hot galvanized steel |
|
C. Materials of blade |
1-Stainless Steel 316, 2-Stainless Steel 304 |
|
Certificates |
Product is type tested by VTT, Finland. Test report is available upon request. |
|
Applications |
Civil defense, Military base, Nuclear power plant |
