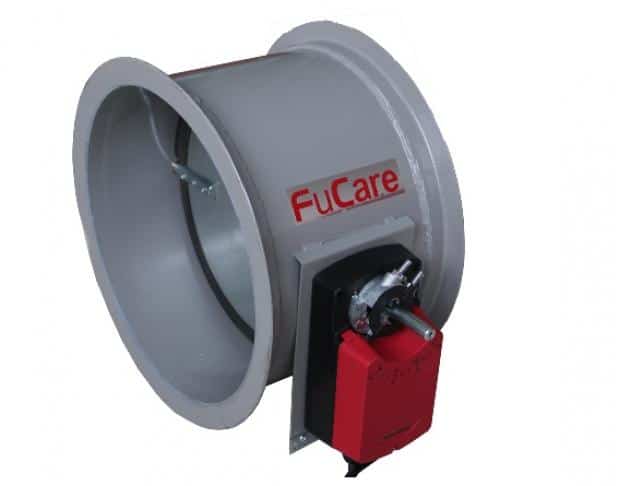

FC-RLD-AJ Air Tight Damper

FC-RLD-AJ round dampers are primarily used in ventilation systems for volume flow and pressure control. It provides remote control function to blade rotating angle for accurate volume control.

Additional information

Features & Benefits

Could be remote controlled for emergency, Epoxy coating fit most of conditions, Quality actuators assure the low cost of maintenance in long term.

Material

Steel with epoxy coating

Leakage

0.5% (500Pa Static pressure)

Working voltage

AC230V /24V

Torque range

2Nm~40Nm

Running time

150S (from 0-95°)

Rotation angle

0~95°

IP level

IP54

EMC

CE 89/336/EEC

Working temperature

-30 ℃-50 ℃

Standby temperature

-40 ℃-80 ℃

Humidity

5-95% Relative, no frost

A. Voltage

LV- AC/DC 24V, HV-AC 230V

B. Diameter Φ (mm)

0200, 0250, 0300, 0350, …

Certificates

CNAS

Applications

OGP, Chemical, Power, Marine, Mining, Civil defense, Others
